Hyd Gantry Metal Shear Machine 45 X 8kw Industrial Demolition Metal Shear Cutter

1 set
MOQ
Negotiable
Price
Hyd Gantry Metal Shear Machine 45 X 8kw Industrial Demolition Metal Shear Cutter
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Hydrualic Gantry Shear
Model: Q43L-10000
Blade Length (mm): 2000
Power(KW): 45*8
Press Box Size (mm): 8000×2000×1100
Cutting Speed: 3-4times/min
Operation: PLC Control
Usage: Waste Mental Recycling Yard
Highlight:

Hyd metal shear machine

,

metal shear machine 45 X 8kw

,

Industrial demolition metal shear cutter
Basic Infomation
Place of Origin: China
Brand Name: WANSHIDA
Certification: ISO9001and CE
Model Number: Q43L-10000
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 25days
Payment Terms: Western Union,L/C,T/T
Supply Ability: 30 sets/month
Product Description
Q43L-10000 Hydrualic Gantry Metal Shear 45*8kw For Industrial equipment demolition bases
Product Overview

The Q43L-10000 Gantry Shear is a giant hydraulic shearing machine specifically designed for extra-large metal recycling and heavy industrial demolition. With an impressive shearing force of 10000 kN and a 2000 mm ultra-long blade, combined with a massive 8000×2000×1100 mm pressing box, it efficiently processes oversized materials such as heavy steel structures, ship components, and large scrapped equipment. It serves as a flagship solution for modern large-scale metal recycling centers.

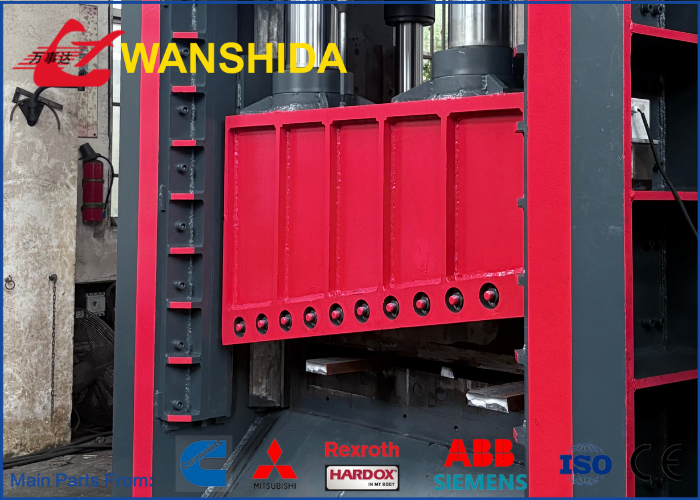

Hyd Gantry Metal Shear Machine 45 X 8kw Industrial Demolition Metal Shear Cutter 0

Product Features

• 10,000 kN Shearing Force: Exceptional power for effortlessly cutting the heaviest metal structures
• Giant Blade Design: 2000 mm ultra-long blade enables single-pass cutting of超大截面 materials
• Oversized Pressing Box: 8000×2000×1100 mm capacity supports continuous processing of extra-long components
• Heavy-Duty Power System: 45 kW×8 multi-motor configuration delivers continuous and stable power
• Intelligent Control System: Equipped with multiple safety protections and remote monitoring capabilities
• Modular Structure: Facilitates transportation and on-site assembly with convenient maintenance

Model Shearing Force (KN) Blade Length (mm) Press box size (mm) Cutting Frequency (times/min) Power (kW)
Q43L-10000 10000 2000 8000×2000×1100 3-4 45*8
Product FAQ (Frequently Asked Questions)
Q1: What is the maximum processing capacity of this equipment?
A: It can shear steel plates up to 500 mm thick or round steel with a diameter of 350 mm in a single pass, suitable for the vast majority of extra-large metal components.
Q2: What special conditions are required for installation?
A: A concrete foundation of C40 grade or higher with a load-bearing capacity of at least 50 tons, a dedicated 360 kW power supply, and a recommended working span of no less than 15 meters are required.
Q3: What is the blade replacement cycle?
A: Using special composite blades, it can operate continuously for over 3000 hours under normal conditions, with specific lifespan depending on material hardness.
Q4: Does it support intelligent management?
A: An optional IoT system enables remote monitoring, fault预警, and real-time production data analysis.
Q5: What are the key maintenance points?
A: Perform hydraulic system checks per shift, weekly lubrication maintenance, monthly comprehensive inspections, and professional maintenance recommended every 2000 operating hours.
Product Application Fields

• Extra-large scrap steel processing centers
• Ship and offshore platform dismantling
• Nuclear power equipment decommissioning
• Heavy machinery equipment demolition
• Bridge and building steel structure recycling
• Oversized industrial equipment disposal
