Home /Products/Vertical Baling Press Machine/CE Vertical Baling Press Machine 25ton - 100ton PET Bottles Scrap Press Machine

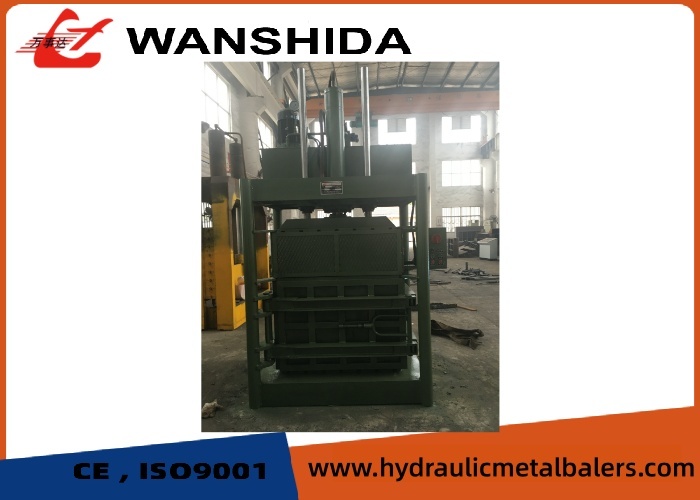

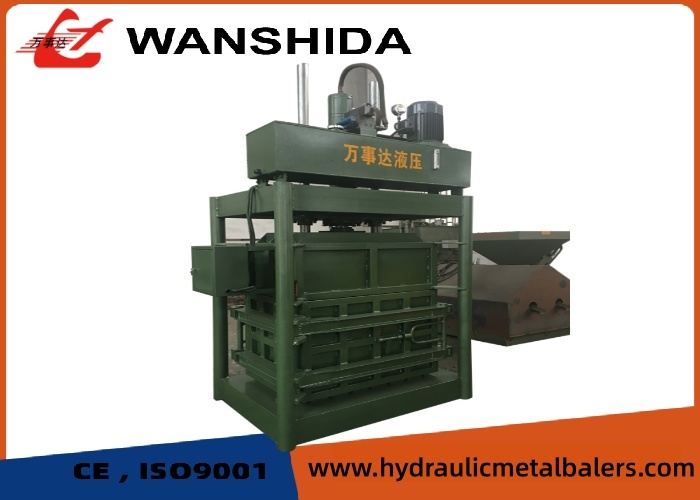

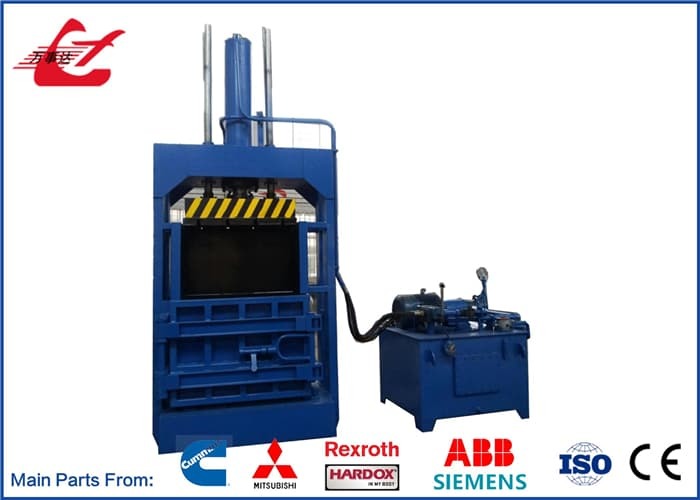

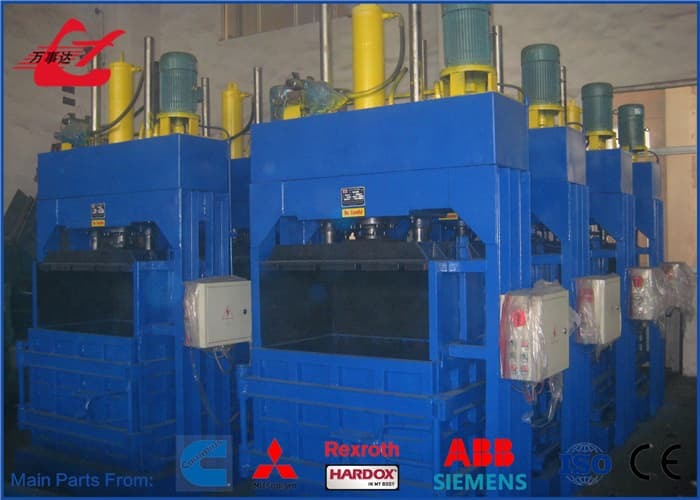

CE Vertical Baling Press Machine 25ton - 100ton PET Bottles Scrap Press Machine

1set
MOQ
Negotiable
Price
CE Vertical Baling Press Machine 25ton - 100ton PET Bottles Scrap Press Machine
Features Gallery Product Description Chat Now
Features
Specifications
Model: Y82
Press Force: 25-100ton
Electric Motor: 15-18.5kW
Operation: Manual
Highlight:

Hydraulic Vertical Baling Press Machine 25ton

,

Vertical Baling Press Machine 100ton

,

PET Bottles scrap press machine
Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: Wanshida
Certification: ISO9001,CE
Model Number: Y82-25
Payment & Shipping Terms
Packaging Details: Sea Worthy
Delivery Time: 30days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 30 sets/mon
Product Description
Y82 series Vertical Hydraulic Baler 25-100ton for Waste Paper PET Bottles
Product Specifications
Product Overview

The Y82 Series Hydraulic Baling Presses represent a complete range of industrial-grade baling solutions designed for efficient compaction of various recyclable materials. This series offers multiple models with different force capacities (25-100 tons) and discharge methods to meet diverse operational requirements. Built with robust construction and advanced hydraulic systems, these machines are engineered to deliver reliable performance in demanding recycling environments while optimizing material density for storage and transportation.

Technical Parameters
No. Model Nominal Force Chamber size Bale section Power Bale discharging/Operation
1 Y82-25F 250kN/25t 1080×560×1500mm 1100×580mm 15kW Manual discharging
2 Y82/F-25F 250kN/25t 1100×800×1500mm 1100×820mm 15kW Turn-out
3 Y82/T-25F 250kN/25t 1100×800×1650mm 1100×820mm 15kW Push-out
4 Y82/T-63F 630kN/63t 1080×750×1500mm 1100×770mm 15kW Push-out
5 Y82/T-100F 1000kN/100t 1200×900×1600mm 1220×920mm 18.5kW Push-out
6 Y82-63FB 630kN/63t 1100×1100×1600mm 1120×1120mm 18.5kW
7 Y82-100FB 1000kN/100t 1100×1100×1600mm 1100×580mm 18.5kW

Key Features
  • Multi-Force Configuration: Available in 25T, 63T, and 100T models to handle materials of varying densities and volumes
  • Flexible Discharge Systems: Three discharge options - Manual, Turn-out, and Push-out - providing adaptability to different operational layouts
  • Optimized Chamber Design: Strategically sized chambers (1080×560mm to 1100×1100mm) ensure efficient material compression and standardized bale sizes
  • Energy-Efficient Operation: Power consumption ranges from 15kW to 18.5kW, balancing performance with operational economy
  • Heavy-Duty Construction: Reinforced frame and components ensure longevity under continuous heavy-load operations
  • Safety-Centric Design: Integrated safety features and reliable hydraulic systems ensure operator protection and consistent performance
Frequently Asked Questions (FAQ)
Q1: What are the main differences between the three discharge methods?
A1:
  • Manual Discharge: Suitable for operations with lower production frequency
  • Turn-out Discharge: Ideal for continuous operations with space constraints
  • Push-out Discharge: Best for high-volume operations requiring automated material handling
Q2: How do I select the appropriate model for my specific needs?
A2: Selection depends on:
  • Material type and density (25T for light materials, 63T/100T for dense materials)
  • Required throughput capacity
  • Available space and material handling system
  • Preferred level of automation in discharge process
Q3: What materials can be processed with these balers?
A3: The series is suitable for various recyclables including:
  • Paper and cardboard
  • Plastic containers and films
  • Textiles and non-woven materials
  • Aluminum cans and light metal scrap
Q4: What are the installation requirements?
A4:
  • Solid, level concrete foundation
  • Appropriate electrical connection (380V/50Hz standard)
  • Adequate space for operation and maintenance access
  • Proper material feeding and bale removal arrangements
Applications

Our vertical waste baler efficiently compacts waste PET bottles, cardboards, newspapers, paper, woven bags, fabric, and other loose materials. It's ideal for packing scrap carton, news paper, straws, waste plastics like PET bottle, plastic film, and recycle cases.

Product Advantages
  • Hydraulic drive system for reliable operation
  • Rational and compact structure design
  • Small size and light weight with low inertia
  • Low running noise with stable operation
  • High operating efficiency with low energy consumption
  • Easy installation and operation
  • Strong environmental adaptive ability
CE Vertical Baling Press Machine 25ton - 100ton PET Bottles Scrap Press Machine 0
