| Brand Name: | WANSHIDA |
| Model Number: | Q43L-8000 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 50days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

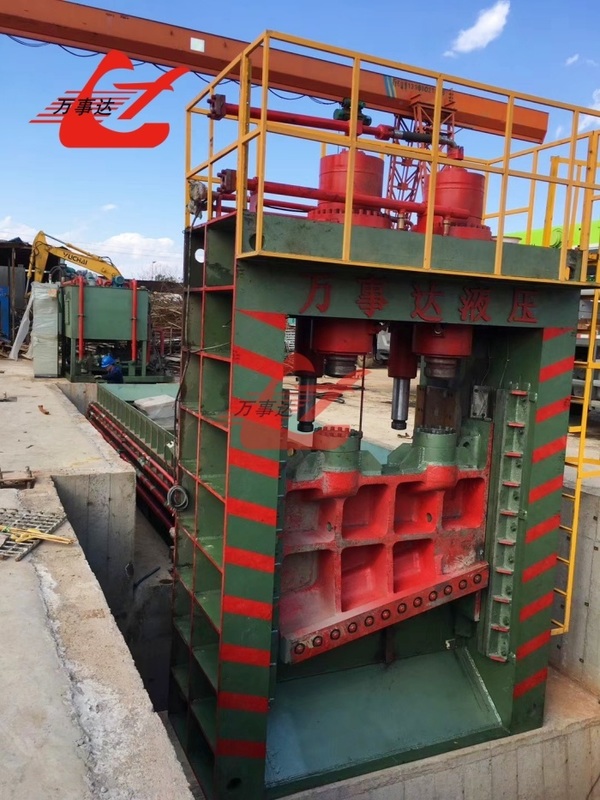

The Hydraulic Gantry Shear is a heavy-duty scrap processing machine designed for large-scale recycling centers, steel mills, ports, and demolition sites. With a massive cutting force of 8000 kN and a 270 kW high-power motor, this machine ensures efficient, precise, and continuous cutting of oversized scrap steel, structural steel, and industrial waste. Its robust structure, combined with PLC automatic control and an air cooling hydraulic system, makes it a reliable choice for 24/7 operations.
The gantry shear is widely applied in:
Scrap steel recycling yards
Steel plants & smelting facilities
Construction and demolition waste processing
Ports and large logistics recycling hubs
It is ideal for cutting large steel beams, plates, round bars, square bars, and bulky scrap, making scrap processing and furnace feeding more efficient.
| Model | Q43L-8000L Gantry Shear |
|---|---|
| Cutting Force (kN) | 8000 |
| Loading Room Size (mm) | 8000 × 1950 × 900 |
| Blade Length (mm) | 2000 |
| Hydraulic Pressure (MPa) | 25 |
| Cooling System | Air Cooling |
| Cutting Speed (times/min) | 2–3 |
| Motor Power (kW) | 270 |
| Operation | PLC Automatic Control |
| Machine Weight (kg) | 92,000 |
High Cutting Force: 8000kN shear force for heavy-duty scrap.
Large Feeding Chamber: 8m loading room to handle oversized materials.
Efficient Power System: 270kW motor with air cooling for stable performance.
PLC Automation: Easy to operate with safety features and overload protection.
Durable Design: Built for continuous heavy-duty industrial use.
Q1: What materials can the gantry shear cut?
It can cut steel beams, plates, round and square bars, and bulky scrap metal up to large dimensions.
Q2: How does the cooling system work?
The machine is equipped with an air cooling hydraulic system, ensuring stable operation during long shifts.
Q3: Is the machine easy to operate?
Yes, the PLC control system allows semi-automatic or automatic operation with high safety.
One-year warranty with lifelong maintenance support.
Spare parts available and quick technical response.
On-site installation and training can be provided if required.
