| Brand Name: | Wanshida |
| Model Number: | Y83/F-250 |
| MOQ: | 1set |
| Price: | 10000~15000$ |
| Delivery Time: | 50days |
| Payment Terms: | L/C,T/T,Western Union |

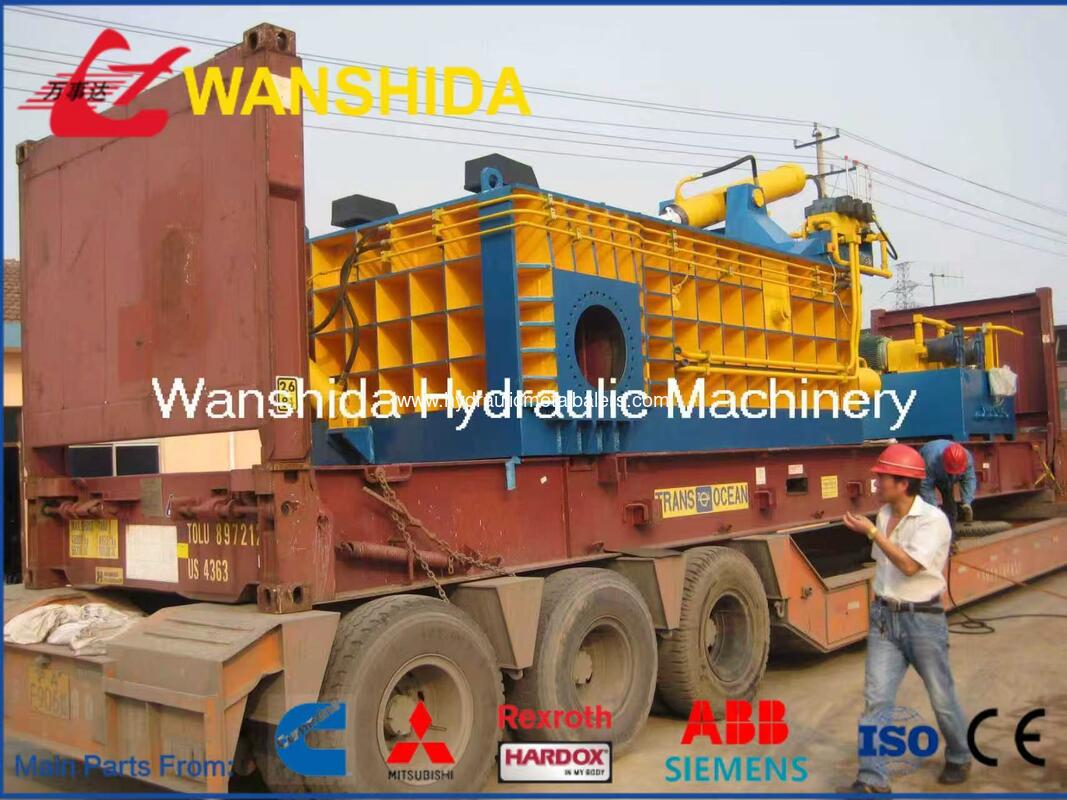

The 250 Ton Hydraulic Metal Baler is a heavy-duty recycling machine designed to compress loose metal scrap into dense, compact bales for easier storage, transportation, furnace charging, and resale. With a nominal pressing force of 2500 kN, this machine is suitable for European scrap yards, metal recycling plants, steel mills, foundries, automotive dismantling centers, and industrial waste processing facilities.
It can process a wide range of ferrous and non-ferrous materials, including steel sheet offcuts, aluminum scrap, copper scrap, stainless steel, light structural steel, metal cans, wire, profiles, and production waste. By reducing the volume of loose scrap, the baler helps recycling companies lower transport costs, improve warehouse utilization, and achieve more efficient material handling.
Loose metal scrap normally occupies a large amount of space and is difficult to stack or transport efficiently. The Y83-250 hydraulic metal baler compresses irregular scrap into uniform rectangular bales with a density of more than 1800 kg/m³, depending on the material.
The finished bale size is approximately 400–700 × 500 × 500 mm, making the bales suitable for forklift handling, truck loading, container transport, and direct furnace feeding. Compact bales can help European recycling businesses reduce the number of transport trips and improve the loading efficiency of trucks and containers.
The machine is equipped with a spacious 2000 × 1400 × 900 mm compression chamber, allowing operators to load bulky scrap materials with less preparation. Larger steel sheets, metal offcuts, profiles, and mixed production scrap can be processed without excessive manual cutting.
The large chamber also improves feeding efficiency when the machine is used together with a grab crane, magnetic lifter, conveyor, or other material handling equipment.
The hydraulic system is designed for reliable operation under demanding recycling conditions. Multiple compression movements press the scrap from different directions, helping produce compact and well-shaped bales.
High-quality hydraulic cylinders, seals, valves, and pipelines contribute to stable pressure, reduced leakage risk, and long service life. The hydraulic layout is designed for convenient inspection and maintenance, helping operators reduce downtime during daily production.
For European projects, the machine can be configured according to the local power supply, including common voltages such as:
| Item | Standard Configuration |
|---|---|
| Nominal Force | 2500 kN |
| Compression Chamber | 2000 × 1400 × 900 mm |
| Bale Size | 400–700 × 500 × 500 mm |
| Bale Density | More than 1800 kg/m³ |
| Production Capacity | Approximately 3.5–4.5 tons/hour |
| Motor Power | Approximately 60 kW |
| Bale Discharge | Turn-out discharge |
| Control System | Manual hydraulic valve or PLC control |
| Applicable Materials | Steel, aluminum, copper, stainless steel and mixed scrap |
| Voltage | Customized according to European power supply |
Electrical components, voltage, frequency, motor configuration, control language, safety guards, and emergency-stop devices can be selected according to the destination country and project requirements.
The machine can be supplied with manual hydraulic control or PLC-assisted operation. The control layout is clear and easy to understand, helping operators manage feeding, compression, chamber opening, and bale discharge efficiently.
After compression, the finished bale is discharged through the turn-out mechanism. This structure is simple, reliable, and suitable for scrap yards that require flexible operation and straightforward maintenance.
Optional remote control, conveyor feeding, oil cooling, oil heating, protective covers, and customized control panels are available for different European working environments.
The baler frame is manufactured from heavy steel plates and reinforced at major stress points. The compression chamber, cover, cylinders, and bale discharge structure are designed to withstand repeated high-pressure operation.
Wear-resistant materials can be used in areas that frequently contact scrap metal. This helps reduce structural wear and extends the service life of the machine, especially when processing sharp, abrasive, or irregular metal waste.
Compresses loose metal scrap into dense, transportable bales
Reduces scrap storage space and transportation costs
Improves container and truck loading efficiency
Suitable for ferrous and non-ferrous metals
Large feeding chamber for bulky industrial scrap
Stable hydraulic system for continuous operation
Customizable voltage and electrical configuration
Manual or PLC control options available
Suitable for scrap yards, foundries, steel mills, and recycling plants
The 250 ton metal baler is widely used in:
Metal recycling yards
Steel and aluminum processing plants
Automotive dismantling facilities
Foundries and steel mills
Metal fabrication workshops
Industrial waste recycling centers
Scrap trading and export companies
Copper and aluminum recycling operations
Different European customers may have different requirements for bale dimensions, chamber size, automation level, voltage, control components, safety protection, and feeding method.
The machine can be customized according to the processed material, daily capacity, available installation space, local electricity supply, preferred bale size, and material handling method. Technical drawings, electrical diagrams, operation manuals, spare-parts lists, and installation guidance can also be prepared according to the project requirements.
It can process steel scrap, aluminum scrap, copper scrap, stainless steel, metal sheets, profiles, cans, wires, and light industrial metal waste.
The typical capacity is around 3.5–4.5 tons per hour, depending on the material type, feeding method, operator efficiency, and required bale density.
Yes. The voltage and frequency can be customized according to the destination country, such as 380 V, 400 V, or 415 V, 50 Hz.
Yes. The bale dimensions and compression chamber can be adjusted within a reasonable range according to the customer’s material and handling requirements.
Yes. Manual hydraulic valve control and PLC-assisted control are both available. Remote control and customized electrical components can also be selected.
The recommended model depends on the type of scrap, maximum material size, daily processing volume, required bale dimensions, available power supply, and preferred feeding method.
